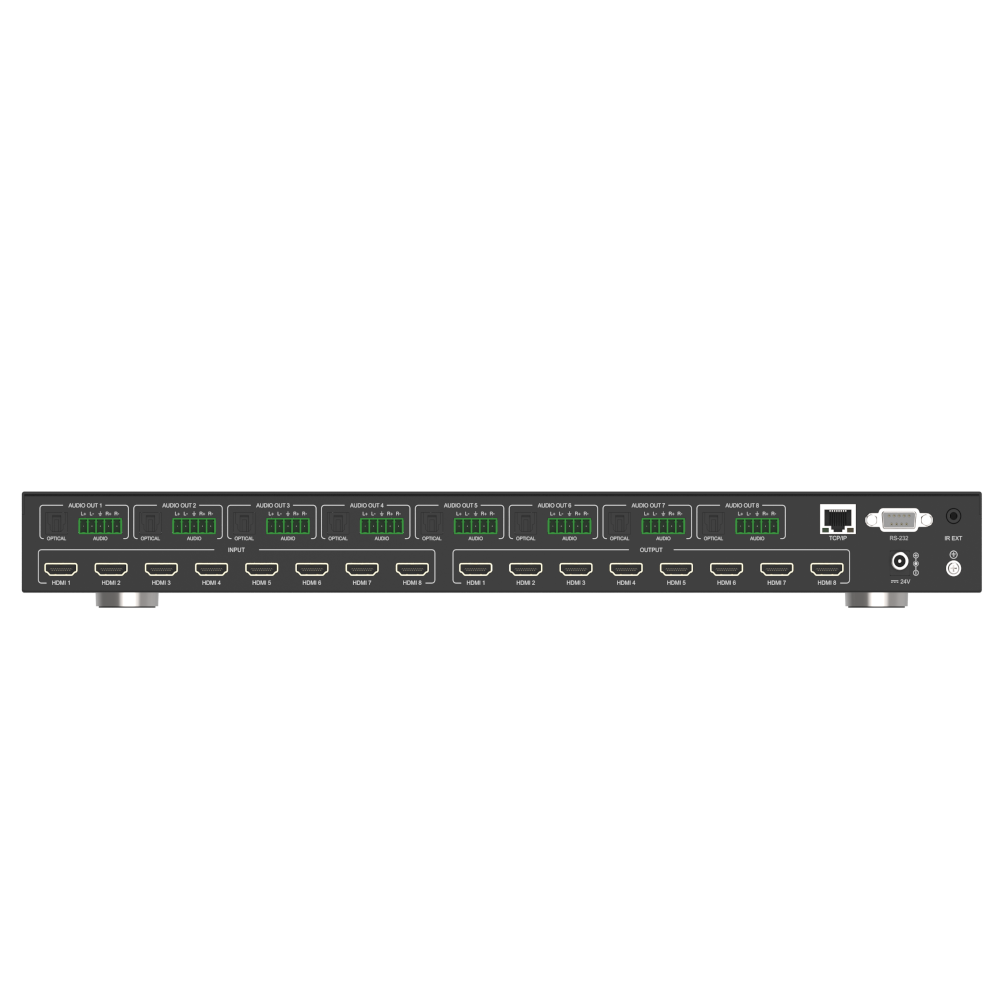

The 4K60 8x8 seamless matrix supports HD video and multi-channel digital or analog audio transmission from 8-channel HDMI input to 8-channel HDMI output.
Video resolution is up to 4K@60Hz 4:4:4, with individual resolution scaling for each output channel. The product has a video wall function, and its seamless switching feature ensures smooth switching of the output screen without frame loss.
A built-in WEB server can be controlled via front panel keys, IR remote control, Web GUI and RS-232 commands.
Video resolution is up to 4K@60Hz 4:4:4, with individual resolution scaling for each output channel. The product has a video wall function, and its seamless switching feature ensures smooth switching of the output screen without frame loss.
A built-in WEB server can be controlled via front panel keys, IR remote control, Web GUI and RS-232 commands.
DetailDiagram
Conforms to HDCP 2.2 specification
Supports HDMI 2.0b compliant video resolution (up to 4K@60Hz 4:4:4) and 18Gbps video bandwidth
Support seamless switching
8 L/R balanced audio outputs
Each output port supports horizontal and vertical mirroring
When there is no signal at the output outlet, you can choose to display black screen, blue screen, or disable output
HDMI audio formats: LPCM, Dolby Digital/Plus/EX, Dolby True HD, DTS, DTS-EX, DTS-96/24,
DTS High Res, DTS-HD Master Audio
Supports CEC control and multi-resolution output
Support power outage memory and intelligent EDID management
It can be controlled via front panel keys, IR remote control, Web GUI and RS-232 commands
Reasonable design, easy to install, standard 1U height
