150m HDBaset Extender

share
Facebook
Twitter
LinkedIn

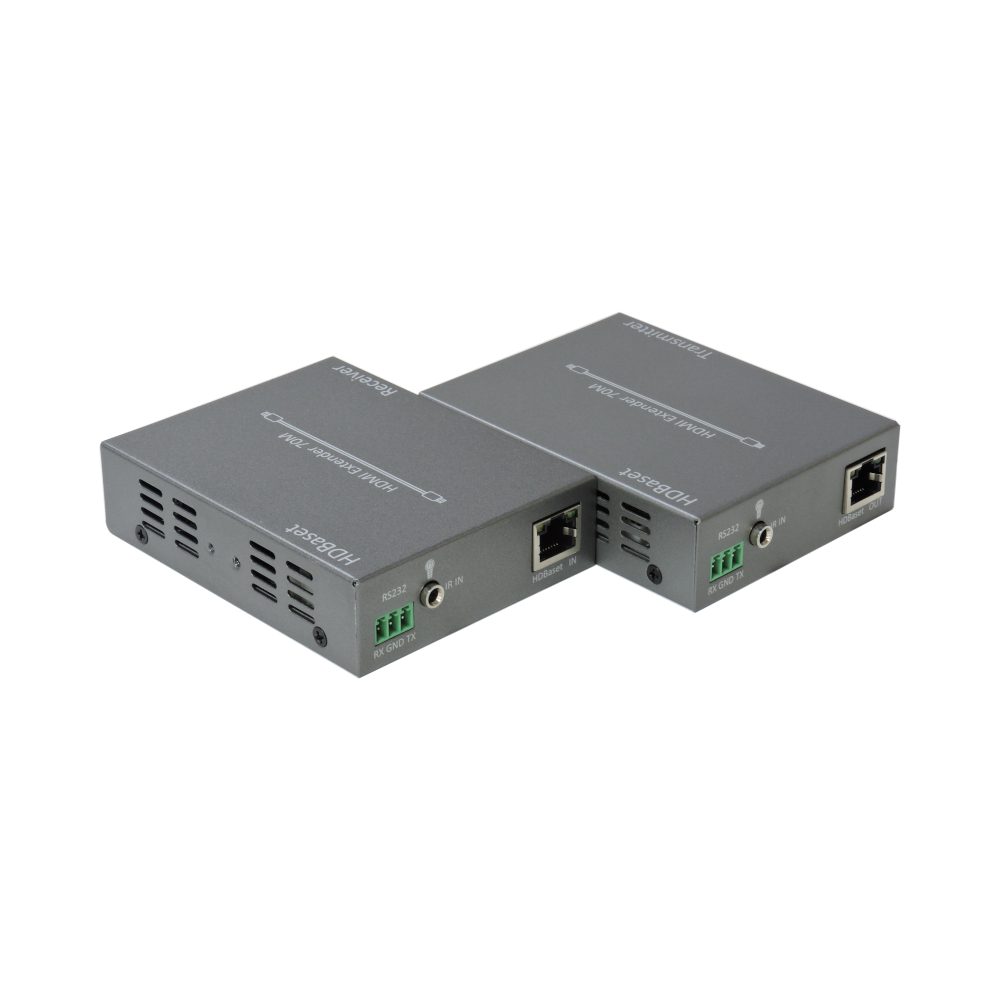

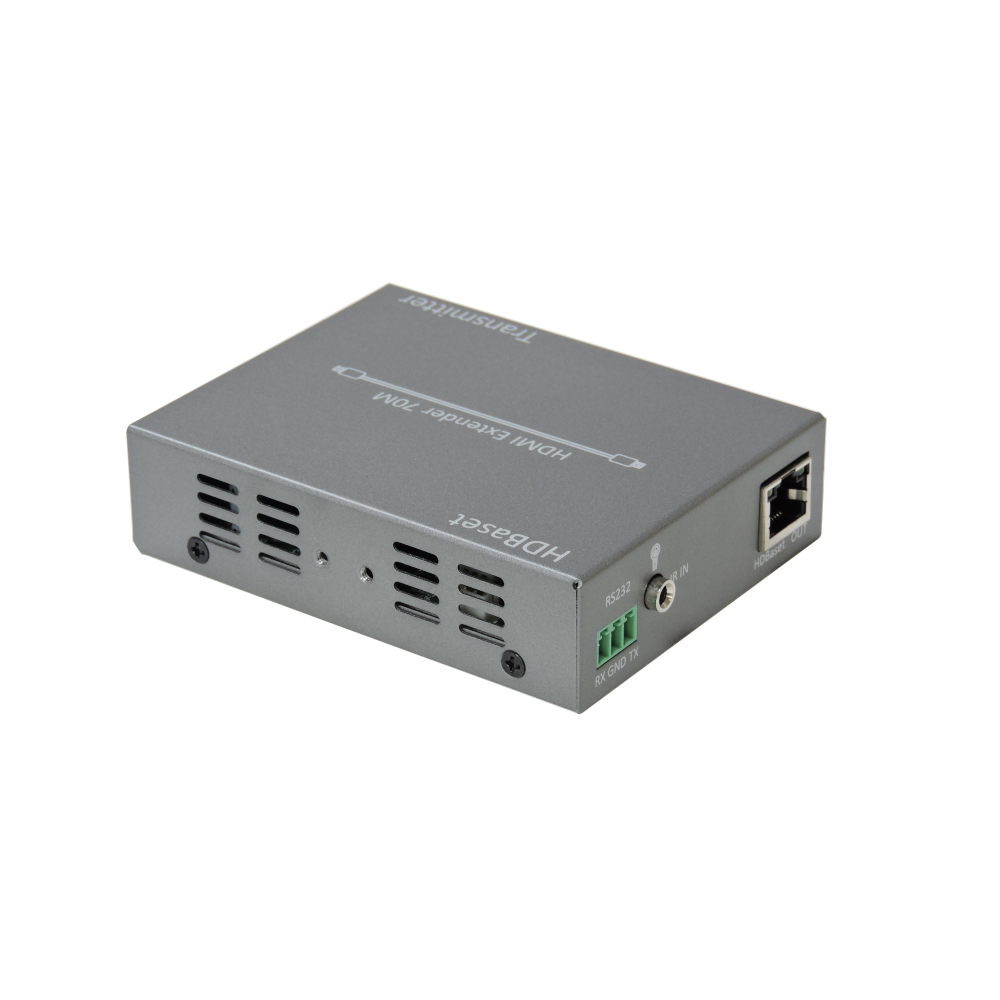

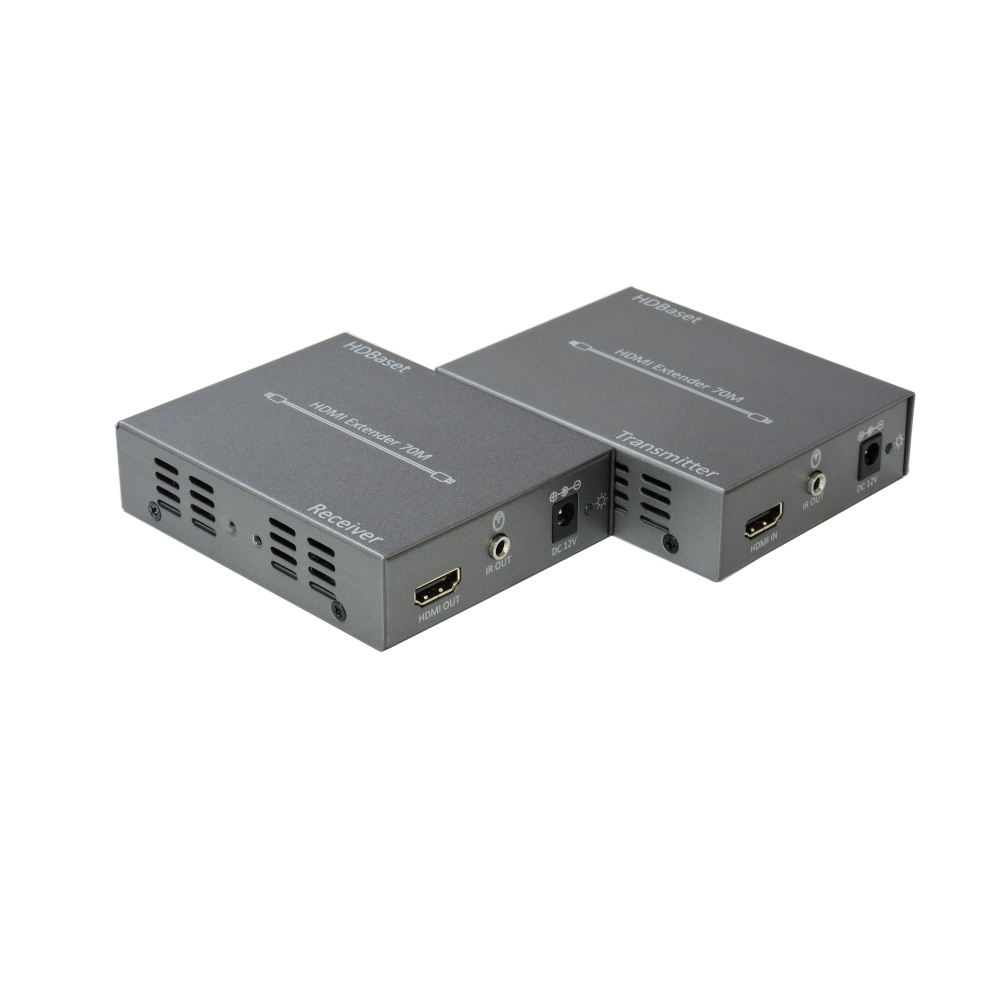

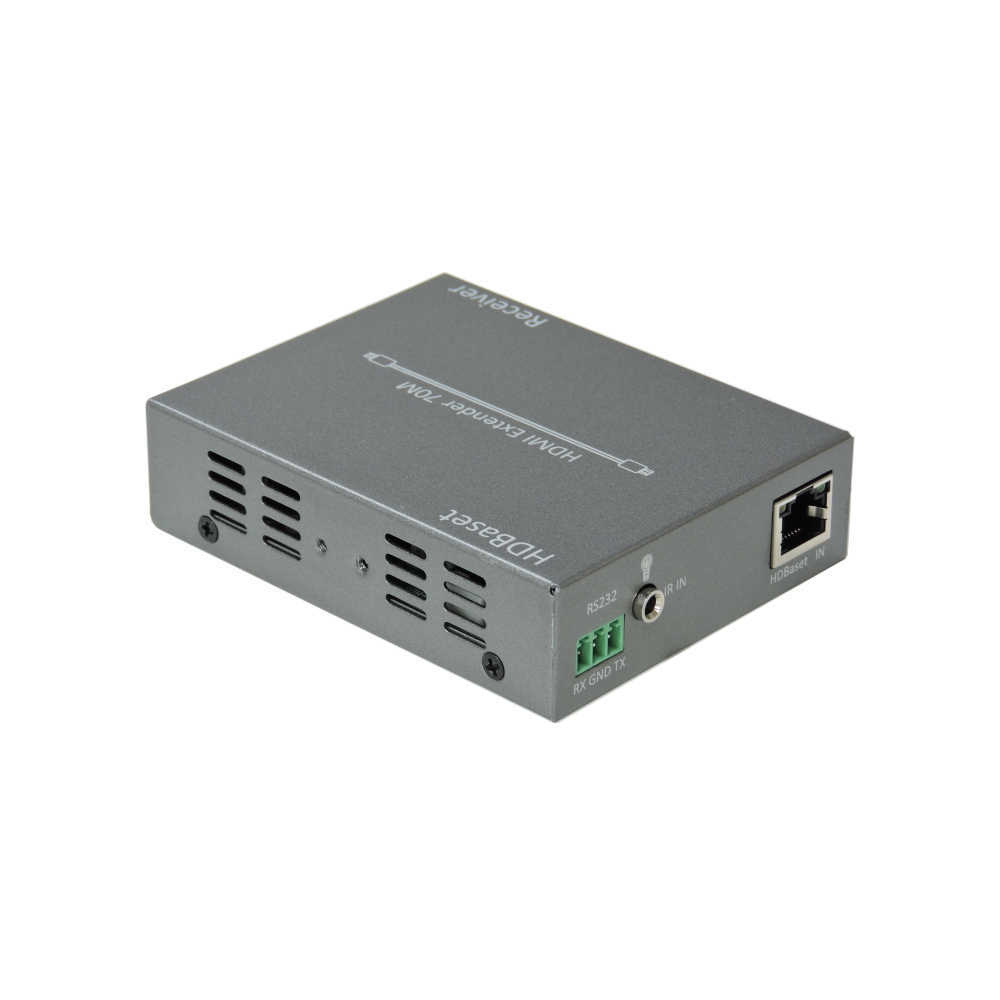

MK-HD150 is a high-performance HDMI image transmitter, its main function is to transmit the HDMI image signal without compression and delay through a network cable for a distance of 150 meters, the highest resolution can support 1920x1080@60HZ transmission. It also supports bidirectional transmission of IR infrared remote control signal and bidirectional transmission of RS-232 serial port signal. The product adopts the standard HDBaset scheme, and the single end can be compatible with the display terminal with the same interface, such as the projector with the HDBaset receiving end
TYPE HDBaset Extender
Brand Makesure
Model MK-HD150
Get a Quotes
DetailDiagram

Support full HD 1080p@60Hz HDMI signal transmission up to 150 meters;

Adopt HDBaset technology; Support HDMI image signal no compression, no delay transmission;

Support bidirectional infrared signal return and serial RS-232 signal bidirectional transmission;

Support HDCP, CEC, 24-bit color depth;

Support uncompressed audio LPCM and compressed audio DTS-HD,Dolby True HD;

Using POC power supply technology, only one end of the transmitter or receiver needs to supply 12V power.

The standard HDBaset scheme can be compatible with the T or R end of the same scheme, such as projection;
