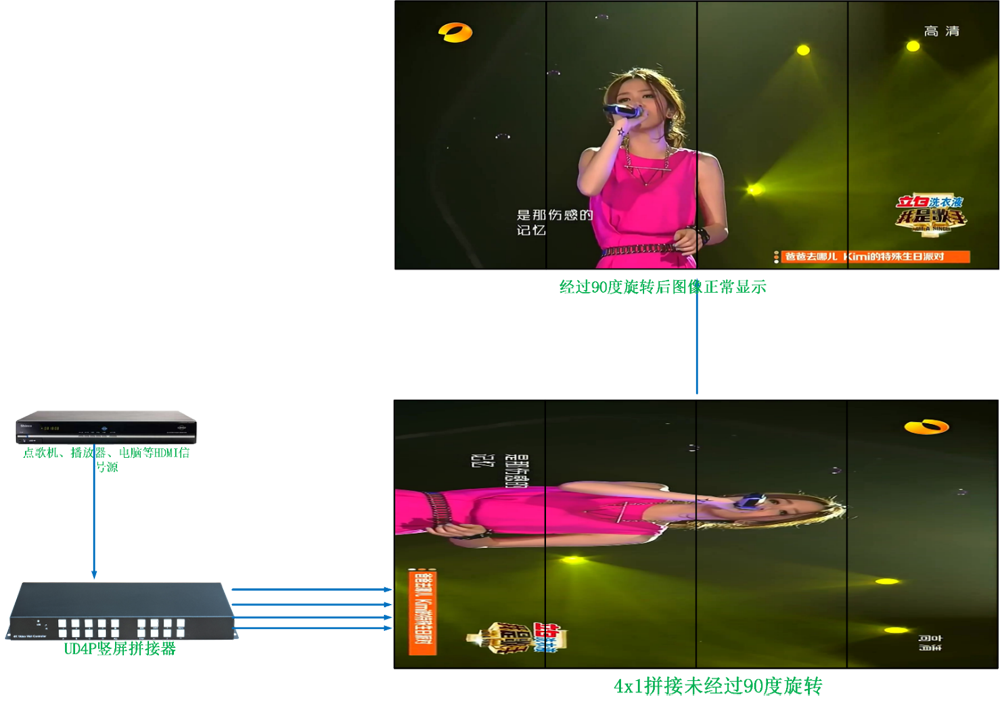

The input signal source is rotated 90 degrees, 180 degrees, 270 degrees, and applied to vertical splicing of signal sources without rotation function, such as karaoke machines.
Support 4 HDMI signal output, can support 1024x768, 1280x800, 1280x720, 1920x1080, 1920x1200 resolution optional. Support any splicing mode within 4 splicing, such as 2x2, portrait 1x3, 1x4 and other modes.
HDMI signal embedded audio, while supporting 1 3.5mm stereo audio output for connecting external audio;

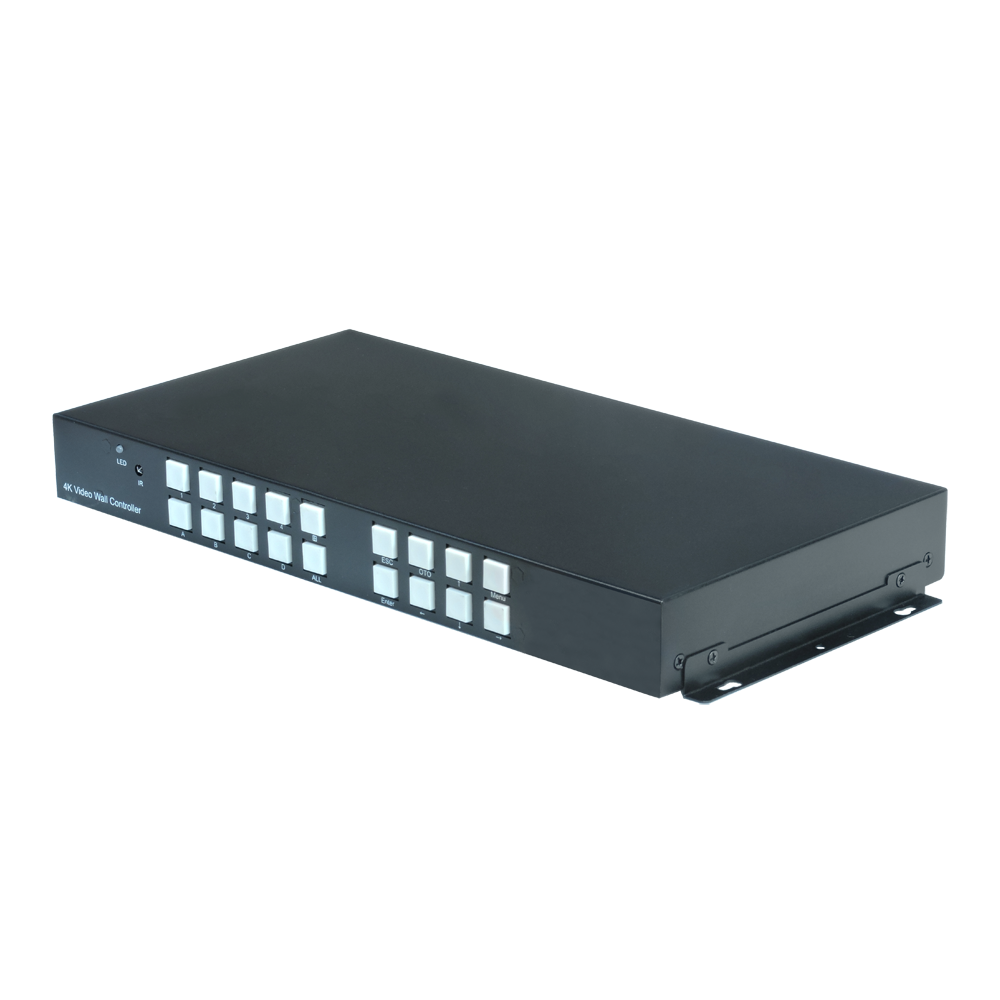

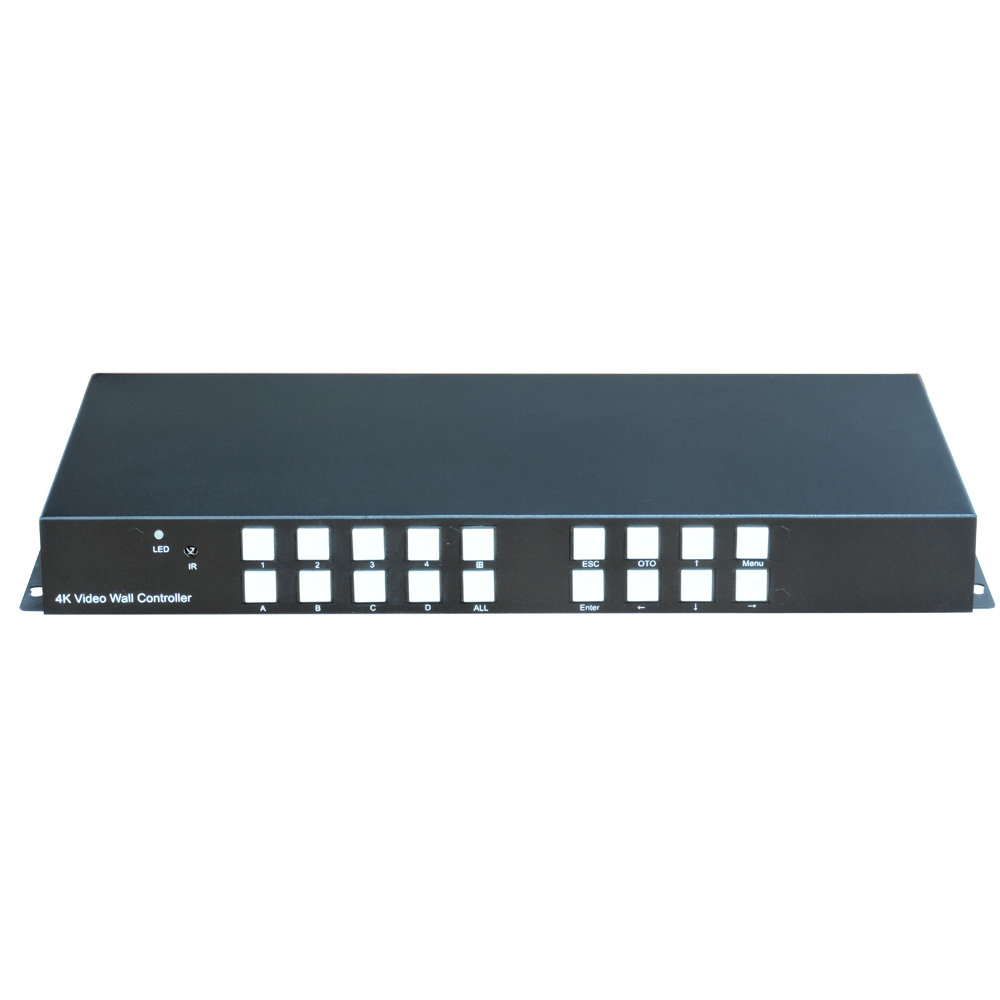

Function Settings can be performed through the chassis button, remote control, control software, and central control.
It has 180 degree mirror flip function for each single display unit. When using ordinary LCD TV splicing, the user turns the previous row of LCD TV 180 degrees, which greatly reduces the LCD splicing gap and reduces the distortion caused by excessive edg
Support different types of signal sources for vertical splicing function;

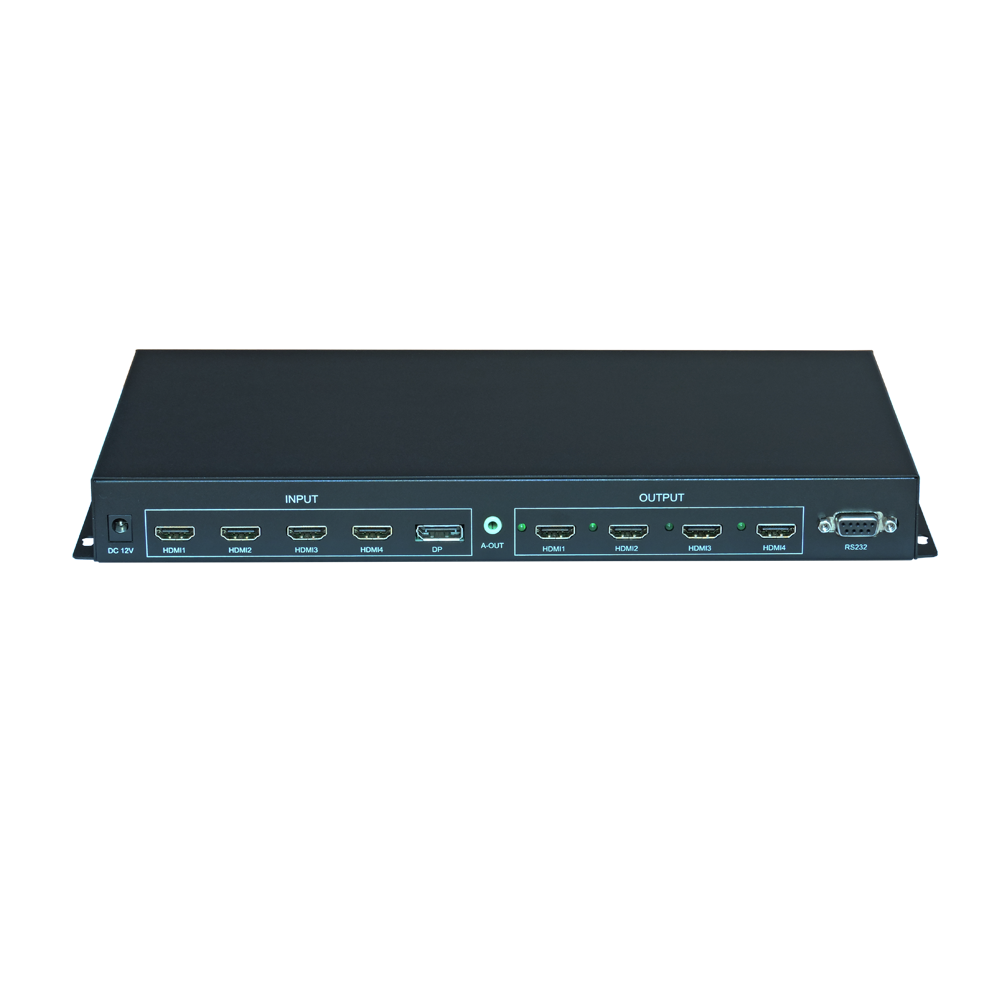

Supports 1 DP1.2 input, 1 HDMI2.0 input, 3 HDMI1.4 input, the highest resolution support 4K@60HZ, backward compatible;
Can customize a variety of different splicing modes, such as 1x2, 1x3, 1x4, 2x1, 2x2, 3x1, 4x1;
Support the input signal rotation 90 degrees, 180 degrees, 270 degrees rotation;
Support edge shielding function, make the display picture more natural after splicing;
You can switch to matrix mode or splice mode;
In matrix mode, seamless switching effect can be achieved, and the switch does not flash or stay;
Matrix mode supports any screen or multiple screens 4 split screen pre-monitoring function;
Support 4 HDMI output, resolution 1024x768, 1280x800, 1280x720, 1920x1080, 1920x1200 optional;
